Transform your fixed conveyor into a flexible multi point discharge system with our Heavy Duty Belt Tripper. Mounted on rails, this traveling tripper car allows you to discharge bulk material at any position along the conveyor length or fill multiple silos continuously. Engineered with a robust steel frame and reliable drive system for grain, coal, and ore handling.
Product Overview

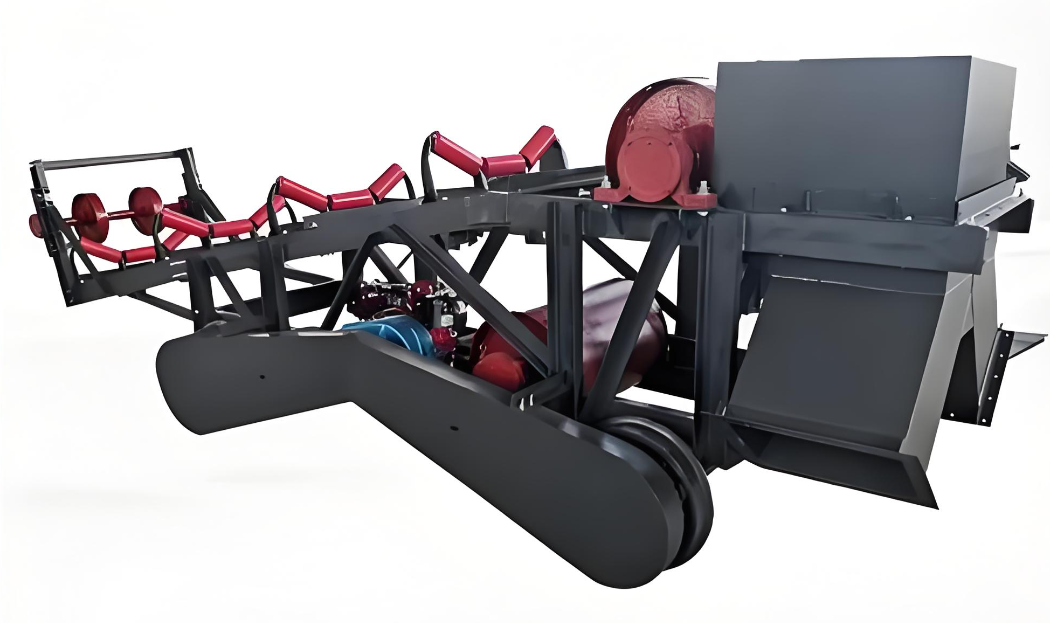

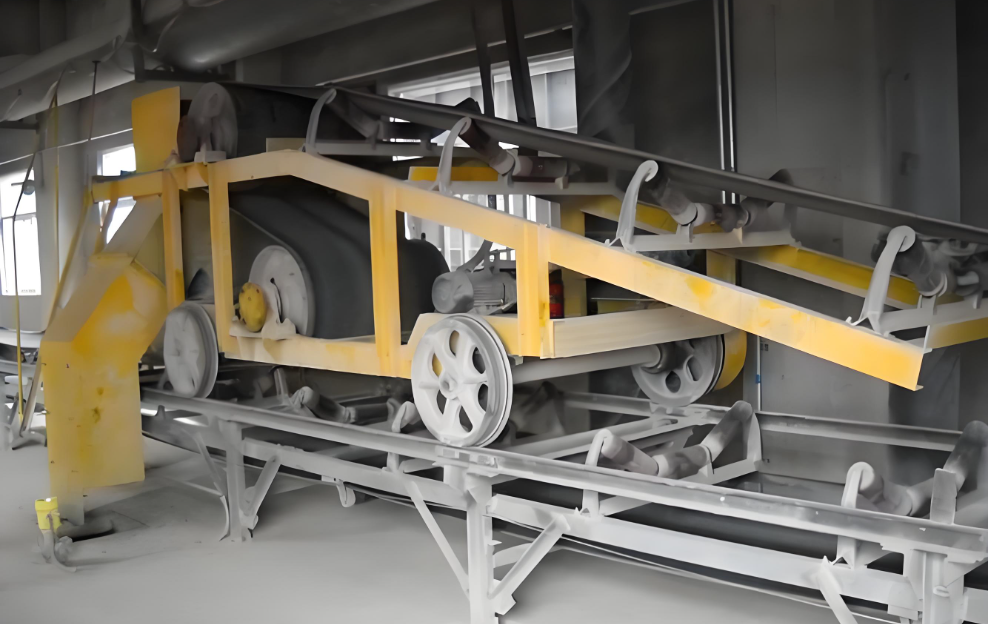

The Belt Conveyor Tripper (also known as a Tripper Car) is a mechanism used to “trip” the material off the conveyor belt at specified locations between the head and tail pulleys. It rides on rails installed alongside the conveyor frame.

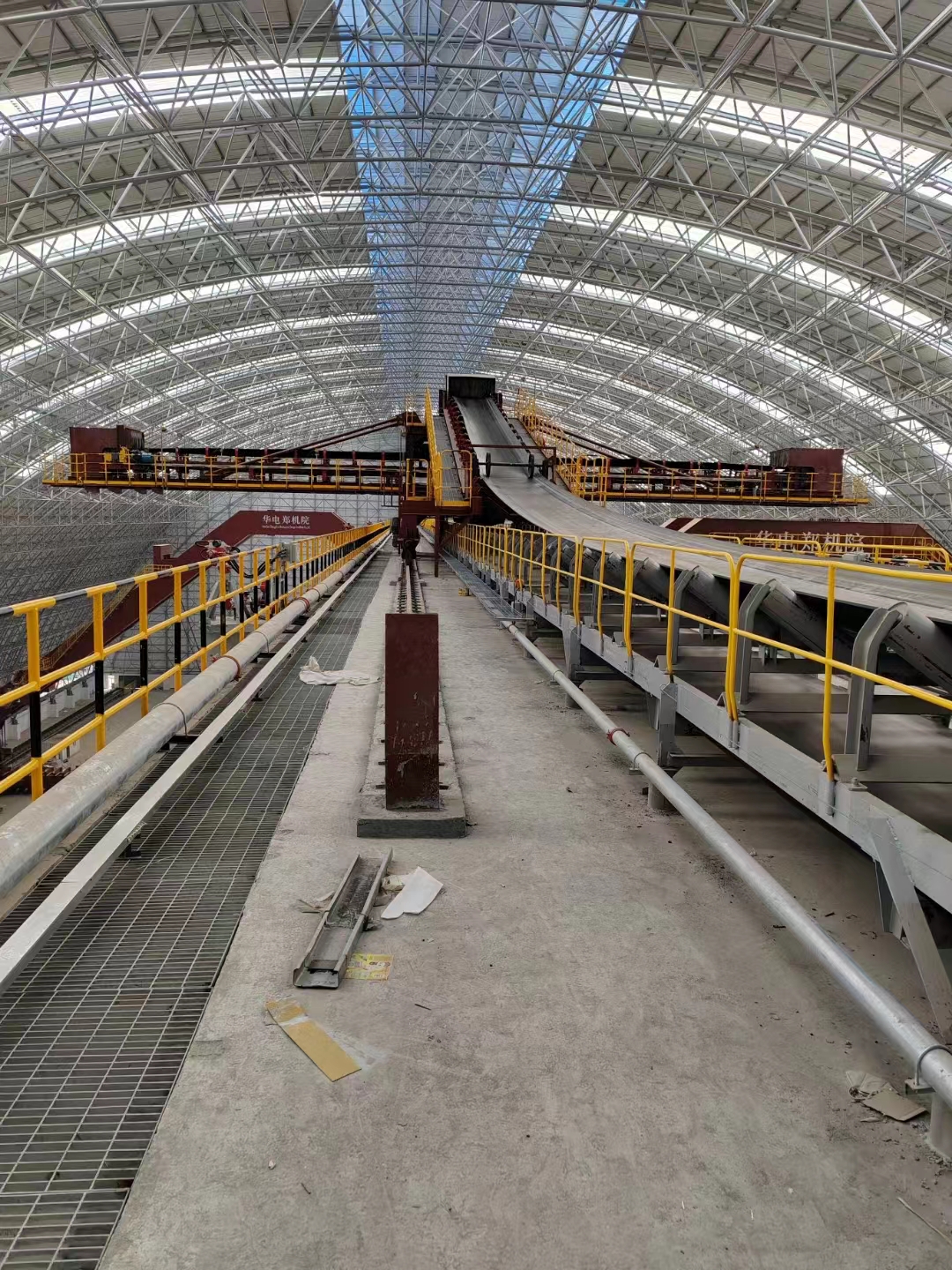

This equipment is essential for large-scale storage facilities, such as indoor coal storage sheds, fertilizer warehouses, and grain terminals, where material needs to be distributed evenly over a long distance.
Working Principle

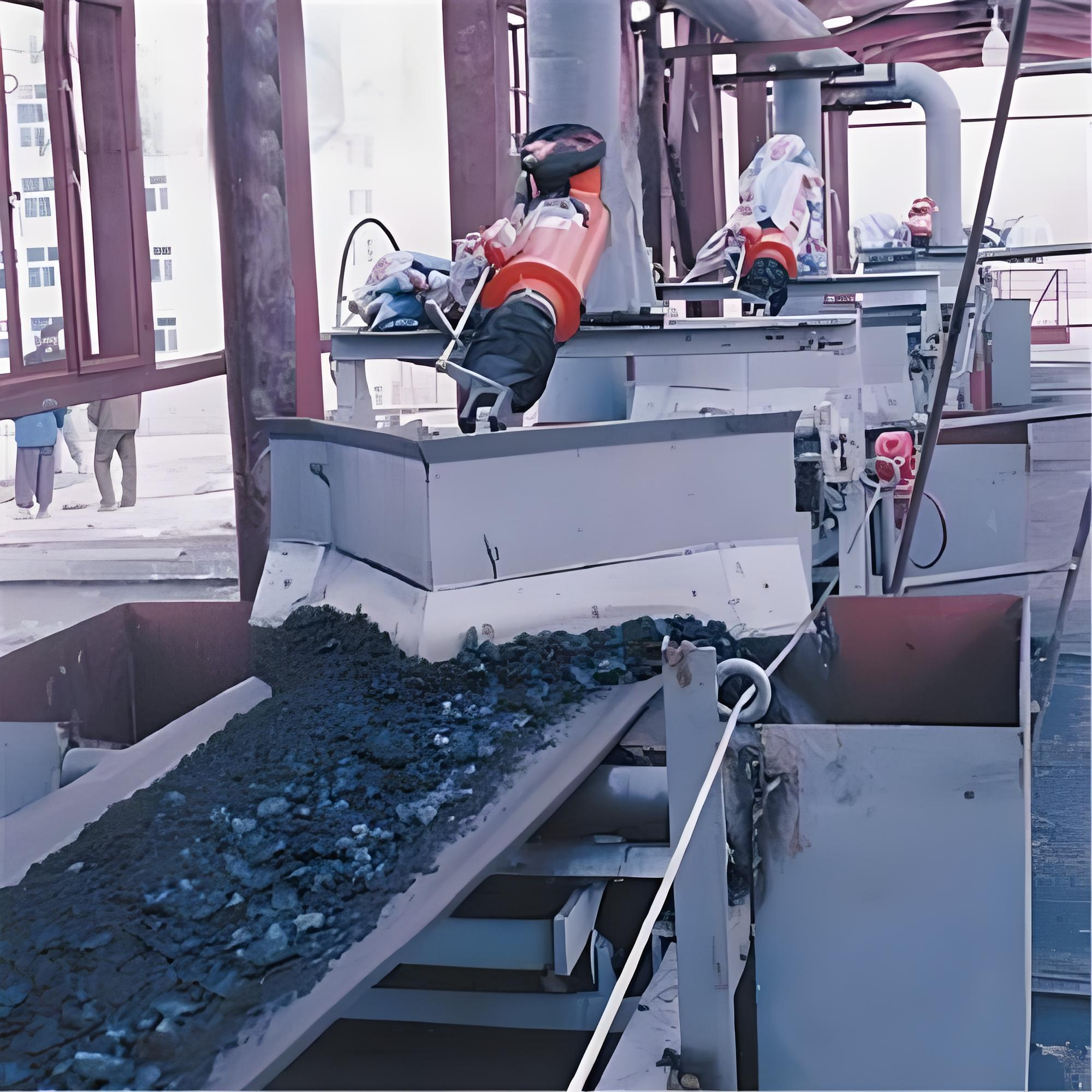

The belt rises up on the tripper incline, passes over a discharge pulley, and deposits the material into a diversion chute. The material is then directed to one side, both sides, or back onto the belt (if no discharge is needed).
Key Features and Options
- Discharge Flexibility: Available in One Way Discharge (Left or Right) or Two Way Discharge (Both sides simultaneously).
- Drive Modes:
- Electric Drive: Motorized travel for frequent movement and automation control.
- Winch Travel: Pulled by a steel rope winch (for simple applications).
- Heavy Duty Structure: Fabricated from Q235B channel steel and plates, fully welded to prevent deformation under heavy loads.
- Dust Control: We can equip the discharge chute with Soft Seals or connect it to a Dust Collection System to minimize airborne dust during discharge.
- Rail Safety: Equipped with rail clamps and limit switches to prevent derailment or over-travel.
Technical Specifications
| Parameter | Specification Details |
| Product Name | Belt Conveyor Tripper Car |
| Belt Width | 500mm 650mm 800mm 1000mm 1200mm 1400mm |
| Travel Speed | 6 to 15 meters per minute (Variable frequency optional) |
| Track Gauge | Customized to fit your conveyor frame |
| Discharge Type | Single Side / Double Side / Bypass Mode |
| Drive Power | 2.2kW to 15kW (Depending on capacity) |
| Wheel Material | Cast Steel or Forged Steel (Hardened) |
| Control System | Local Control Box / Remote PLC Interface |
| Structure Finish | Sandblasting SA2.5 plus Epoxy Painting |
| Application | Grain storage Coal bunkers Power plants Mining stockpiles |
Customization Service
Since every conveyor is different, we manufacture trippers according to your specific rail gauge and height requirements. Please provide your conveyor drawing for a precise quote.
