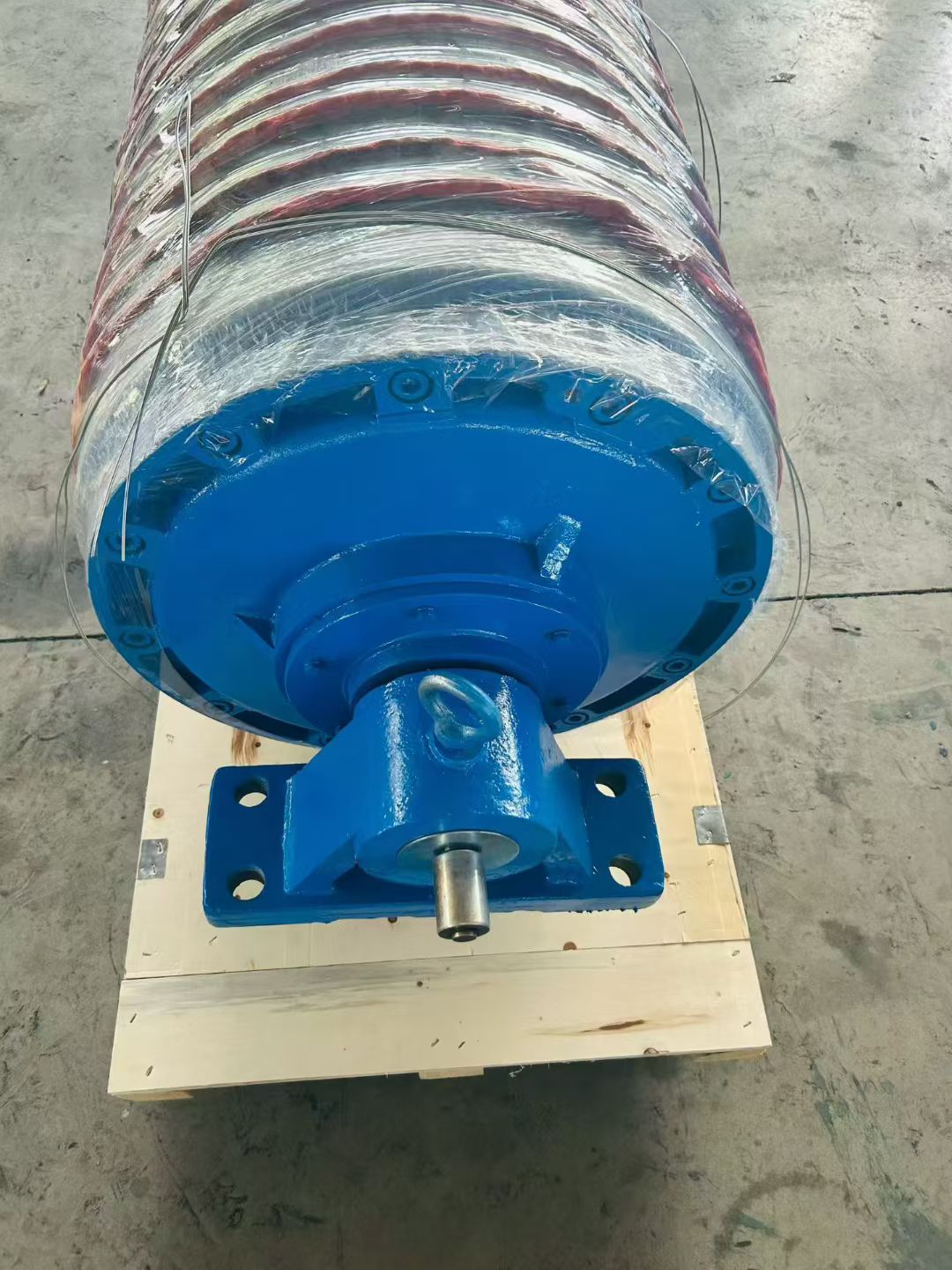

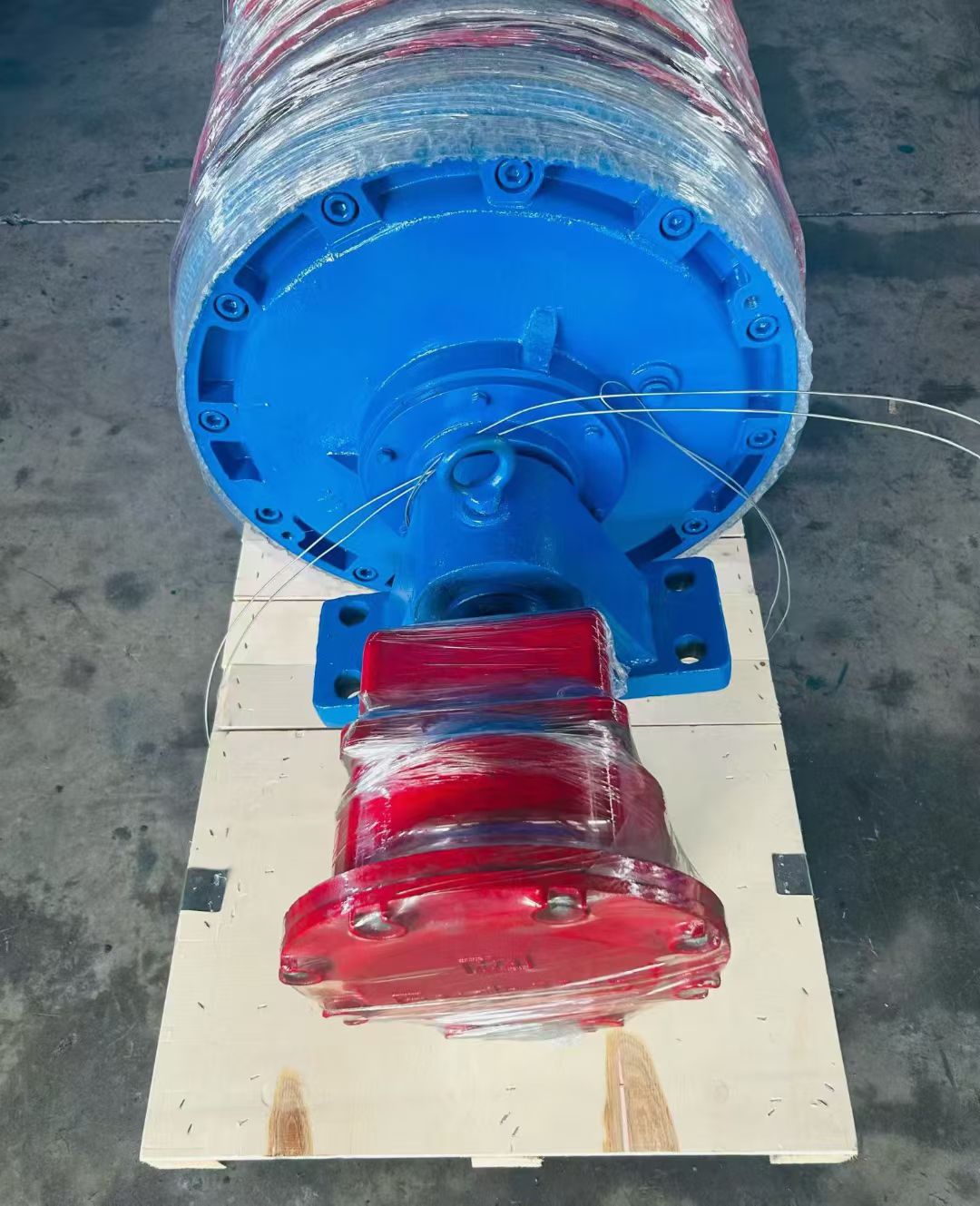

Our Motorized Pulley integrates the electric motor, gear reducer, and bearings inside a hermetically sealed steel shell. This "all-in-one" compact design saves space, eliminates external chains/guards, and ensures safe operation in dust, water, and oil-heavy environments. Engineered with Class F insulation and 100% copper windings for reliable, long-term performance.
Product Overview
The Motorized Pulley (Drum Motor) is the ultimate space-saving drive solution for belt conveyors. Unlike traditional systems (Motor + Coupler + Gearbox + Pulley), our internal drive system is fully enclosed within the pulley shell.
This design is particularly advantageous for Mobile Crushers, Airport Luggage Handling, and Bulk Material Conveyors where space is limited and harsh weather protection is required.
Key Features & Advantages
- Compact & Safe: With no external moving parts (like V-belts or chains), it improves worker safety and frees up valuable plant space.
- Superior Sealing (IP66/IP67): The end caps use double labyrinth seals and oil seals. The internal motor runs in an oil bath, which not only lubricates the gears but also dissipates heat rapidly. Perfect for outdoor or dusty mining sites.
- Robust Motor Core:
- Copper Windings: We use only 100% pure copper wire (no aluminum) for higher efficiency.
- Insulation Class F: Withstands temperatures up to 155°C, preventing burnout under heavy loads.
- Low Maintenance: Since the drive unit is sealed and oil-lubricated, it requires significantly less maintenance than external drive systems. Change the oil every 10,000 hours, and it keeps running.
- Optional Backstop: Available with an internal anti-runback device for inclined conveyors.
Technical Specifications
| Parameter | Specification Details |
| Product Type | Oil-Cooled Motorized Pulley (TDY75 / YZ Type) |
| Power Range | 1.5 kW – 160 kW (2HP – 215HP) |
| Diameter Range | Ø320mm – Ø1000mm |
| Belt Speed | 0.8 m/s – 4.0 m/s (Customizable) |
| Voltage Options | Customizable for Export: 380V/50Hz, 415V/50Hz, 440V/60Hz, 480V/60Hz |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP66 / IP67 (Dust tight & Water resistant) |
| Shell Material | Carbon Steel (Standard) or Stainless Steel 304 (Food Grade) |
| Surface Treatment | Rubber Lagging (Hot Vulcanized) or Anti-rust Painting |
| Standard | ISO 9001:2015 Manufacturing Standard |
Applications
- Mining & Quarrying (Sand, Gravel, Coal)
- Mobile Crushing & Screening Plants
- Cement & Concrete Batching Plants
- Fertilizer & Chemical Handling
