As the power source of your conveyor system, our Drive Pulleys are engineered for maximum traction and torque transmission. Manufactured in our ISO 9001 facility, we feature premium hot-vulcanized rubber or ceramic lagging to prevent belt slippage even in wet mining conditions. Heavy-duty shafts undergo strict thermal treatment to eliminate fatigue risks.
Product Overview

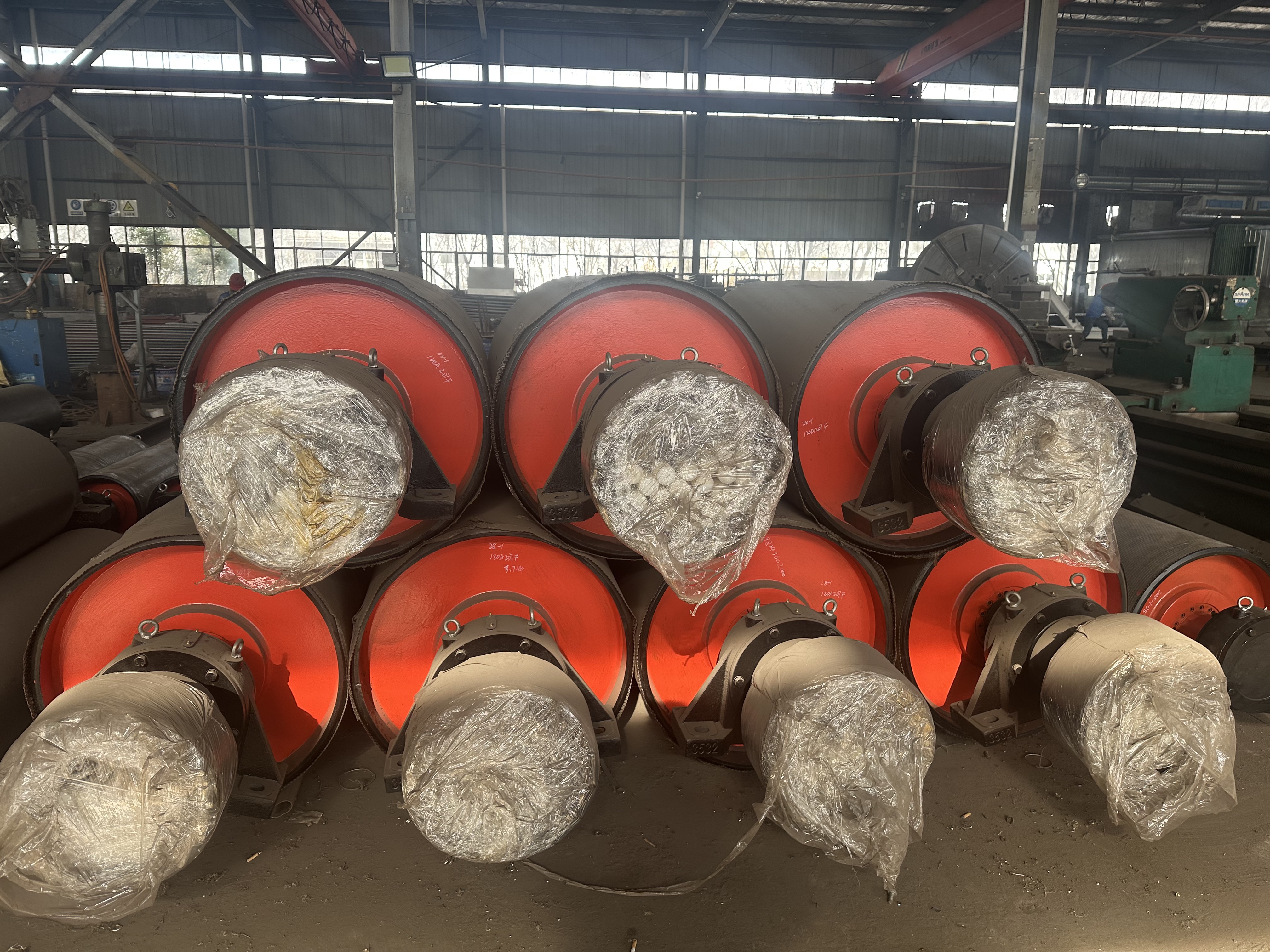

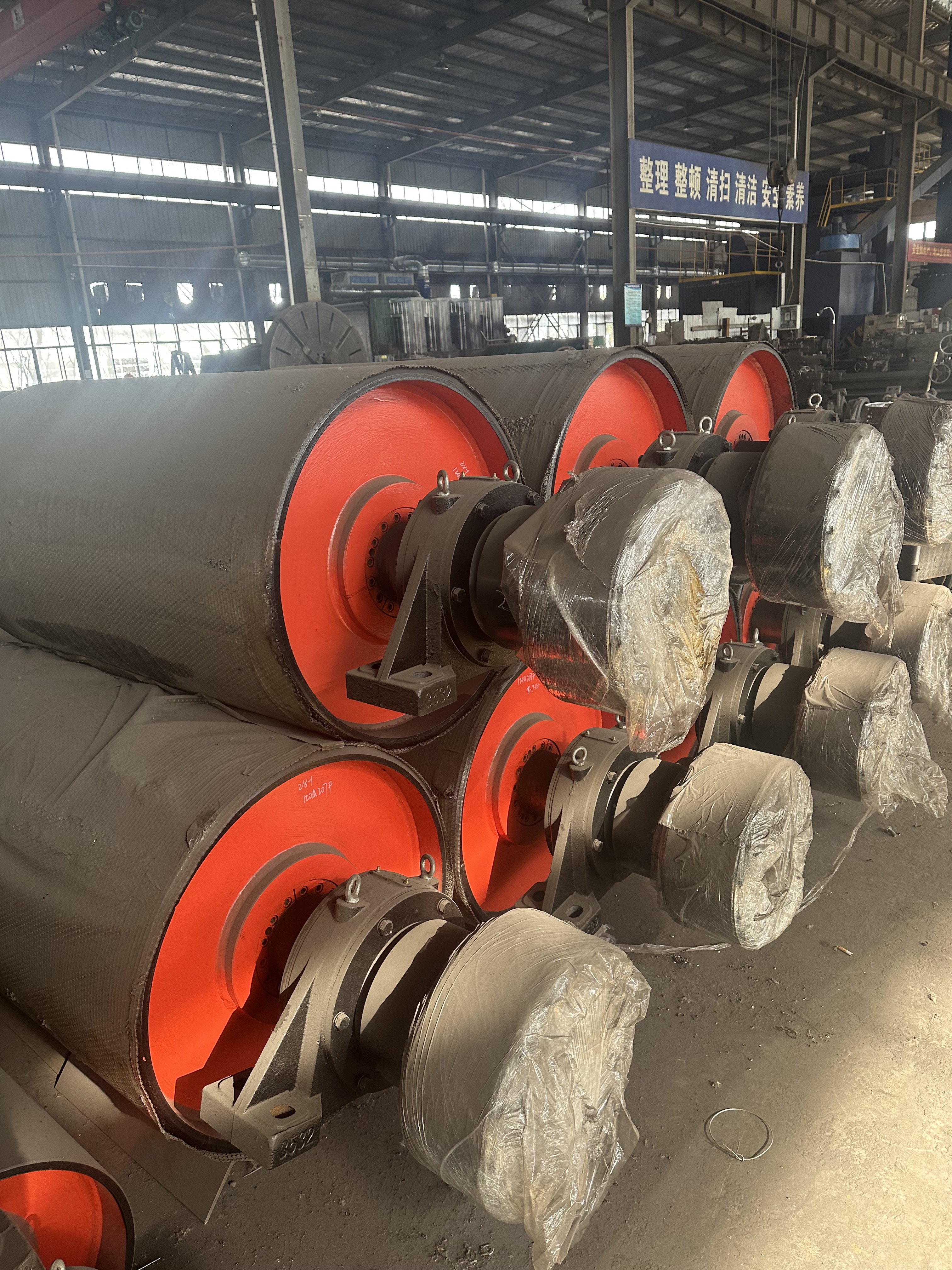

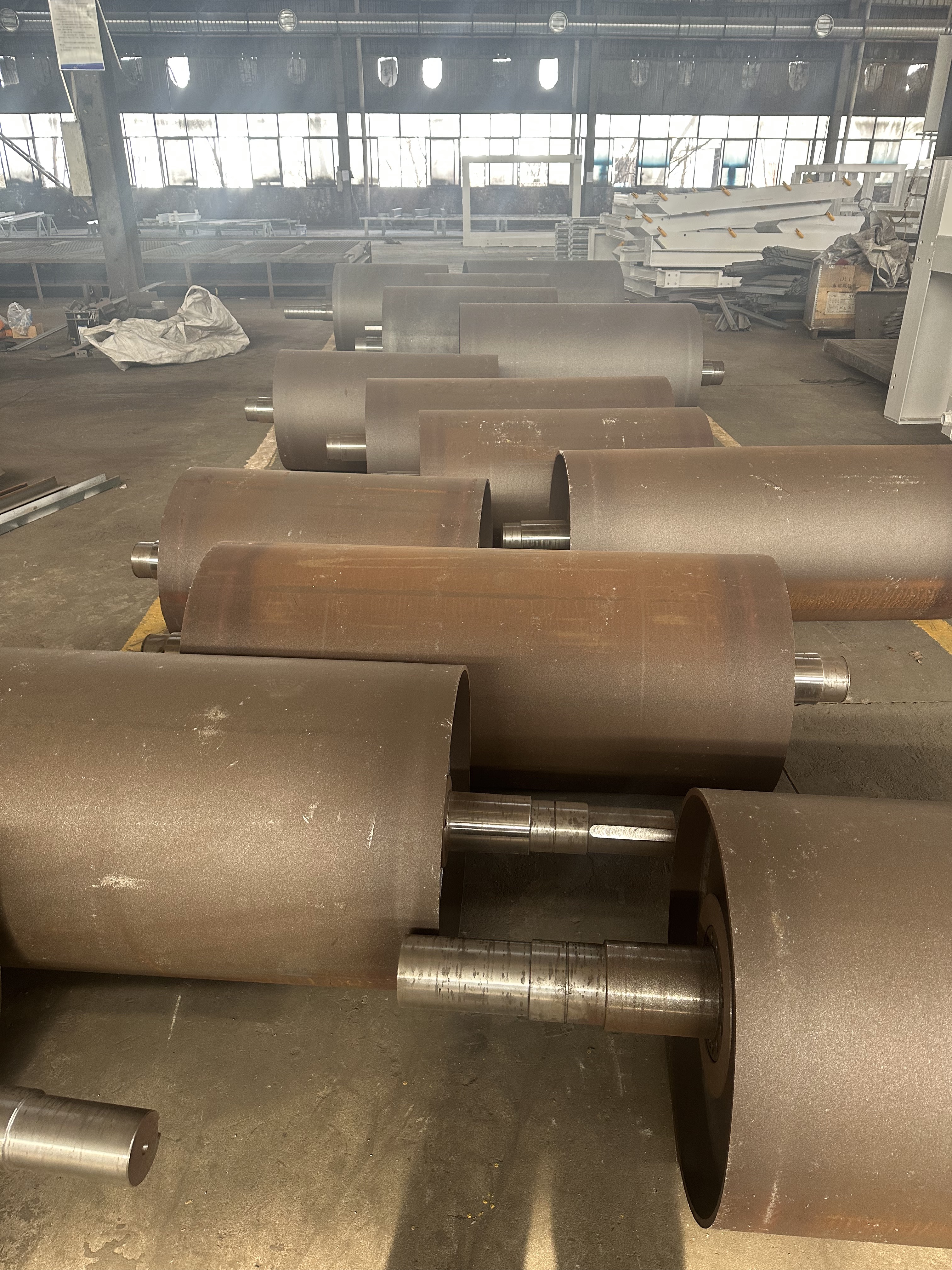

The Drive Pulley (Head Pulley) is the main component for transmitting power from the motor to the conveyor belt. Given the immense torque it handles, structural integrity is paramount. Our drive pulleys are widely used in coal mines, power plants, ports, and quarries where reliability is non-negotiable.
Why Choose Our Drive Pulleys?
- Superior Grip (Lagging Technology):
- Diamond Rubber Lagging: We use high-grade flame-retardant rubber with a diamond pattern for water shedding and increased friction coefficient.
- Ceramic Lagging: For extreme conditions, we offer ceramic lagging embedded in rubber, providing 3-5 times the service life of standard rubber and zero slippage.
- Process: All lagging is Hot Vulcanized (not cold bonded) to the shell ensuring a permanent bond that won’t peel off under high load.
- High-Strength Shafts:
- Shafts are machined from 45# Carbon Steel or 40Cr Alloy Steel.
- Critical Process: All drive shafts undergo Quenching and Tempering (Thermal Treatment). This is crucial for drive pulleys to handle high starting torque without snapping.
- Secure Locking Assembly:
- We offer both Keyed Connections (traditional) and Keyless Locking Assemblies (Z-Lock). The Keyless Locking Assembly is recommended for heavy-duty applications as it provides better centering and easier maintenance.

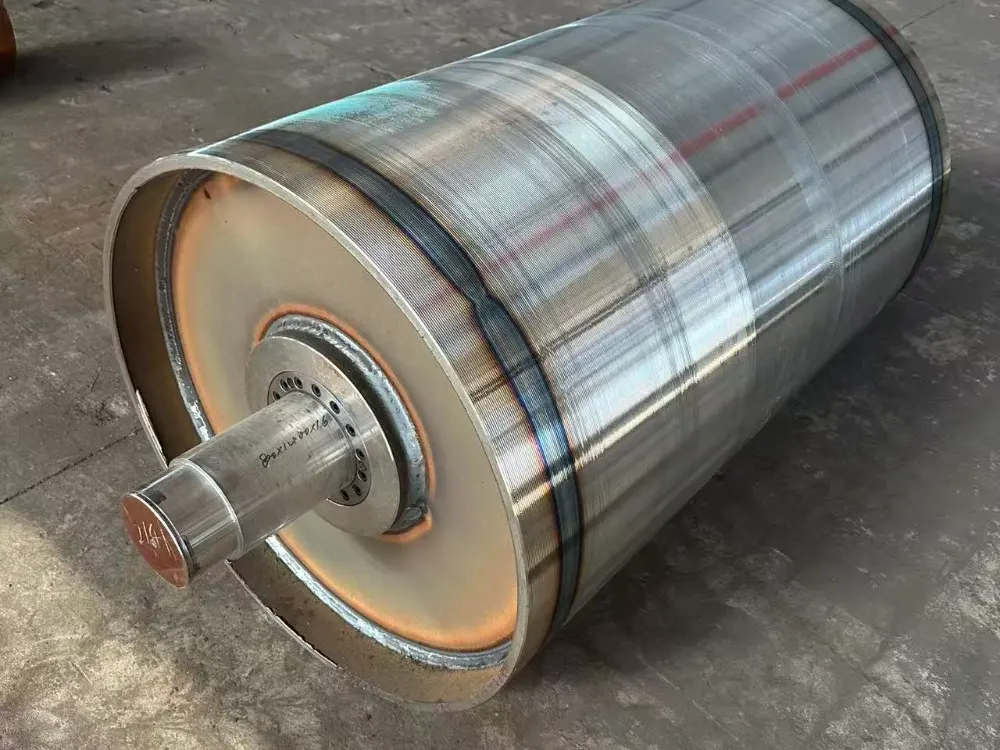

- Heavy Duty Structure: Thick-walled seamless steel pipe shell ensures the pulley maintains its cylindrical shape under high belt tension.
Technical Specifications
| Parameter | Specification Details |
| Component Name | Conveyor Drive Pulley / Head Pulley |
| Diameter Range | Ø315mm – Ø1600mm (Customizable) |
| Face Width | 500mm – 2600mm (Suit for belt width B500-B2400) |
| Shell Material | Q235B / Q345B Seamless Steel Pipe or Rolled Plate |
| Shaft Material | 45# Steel / 40Cr (Quenched & Tempered) |
| Lagging Type | Diamond Rubber (10-20mm) or Ceramic Lagging |
| Lagging Hardness | 60 ± 5 Shore A (Rubber) |
| Connection Type | Key Connection / Keyless Locking Assembly (Expansion Sleeve) |

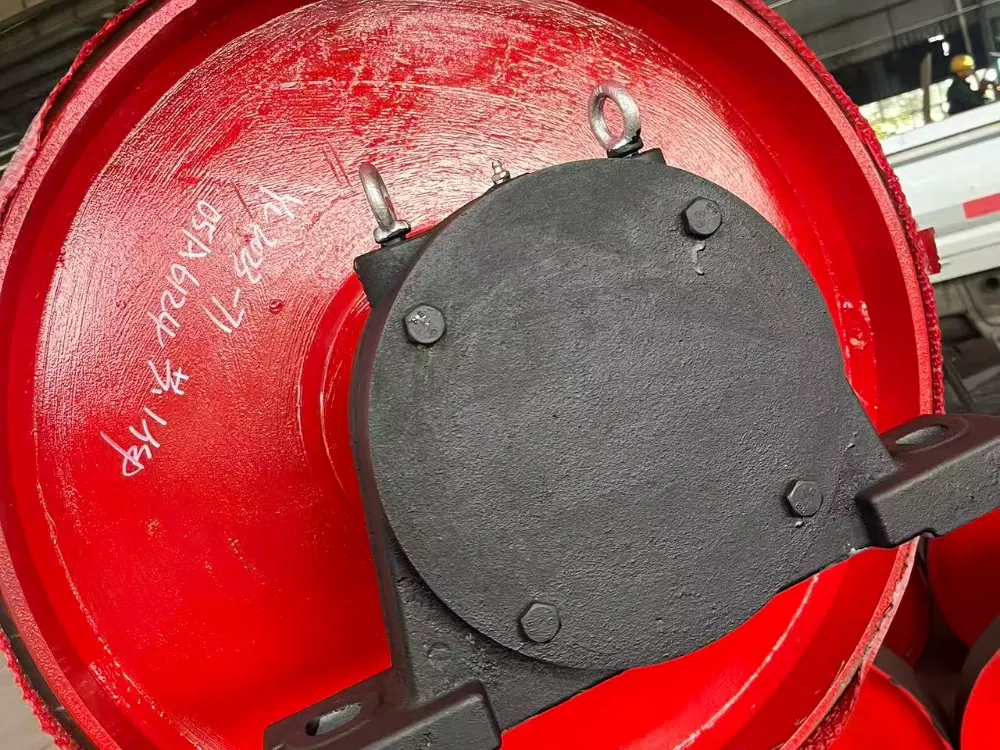

| Bearing Brand | HRB / ZWZ / LYC (SKF/FAG available upon request) |
| Service Life | Designed for >50,000 hours |
| Quality Standard | ISO 9001:2015 Certified Process |
Quality Assurance
We understand that a drive pulley failure halts the entire production line. Therefore, we perform:
- Ultrasonic Testing (UT): On all welding seams and raw shaft materials.
- Rubber Adhesion Test: Ensuring the CN bonding layer is secure.
- Static & Dynamic Balancing: Ensuring vibration-free operation at high speeds.
